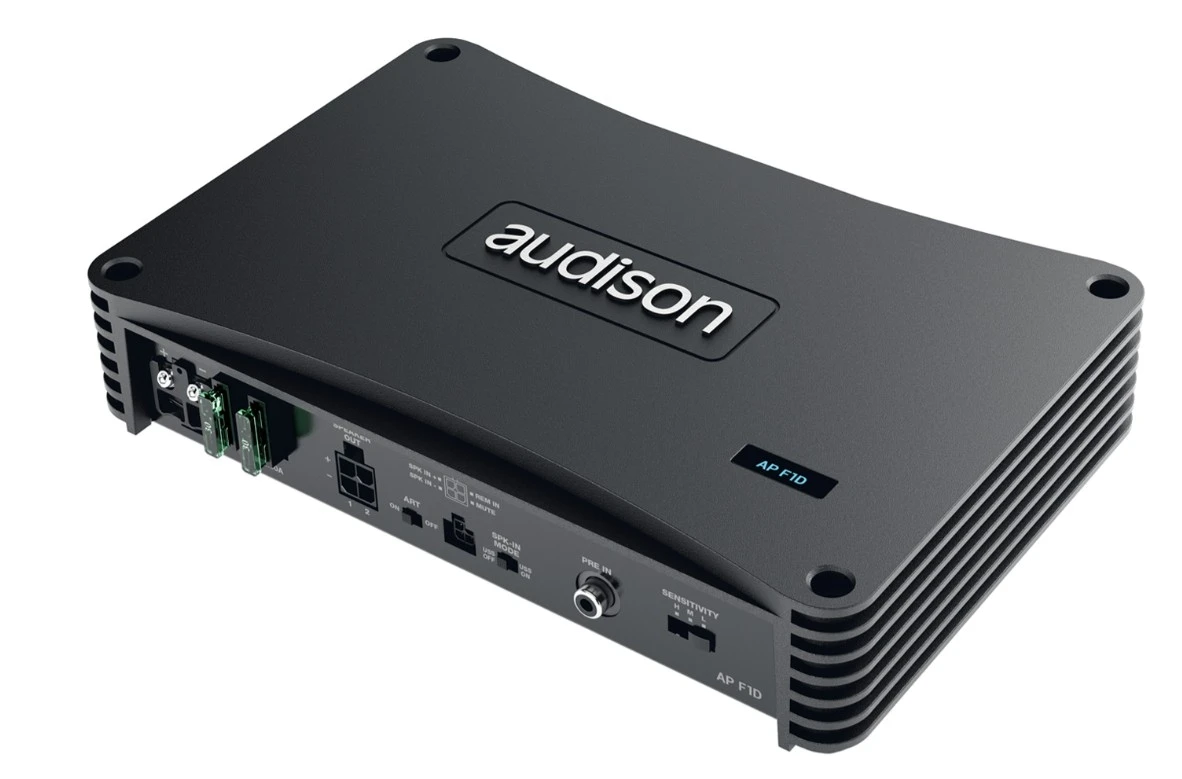

Audison – AP F1D

AP F1D

MONO AMPLIFIER 1x1000W

Der neue AP F1D-Monoblock-Verstärker wurde für den anspruchsvollsten Subwoofer entwickelt und ist die ideale Ergänzung des AP F8.9-Bits. Bei 1 Ohm stabil und in der Lage, bis zu 1000 W Leistung bei gleichzeit extrem kompakten Abmessungen zu liefern.

Power Output

• Load. Imp. Mono
• 4 Ohm 500 W
• 2 Ohm 800 W
• 1 Ohm 1000 W

POWER SUPPLY

• Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 30A
• Operating power supply voltage 6.5 ÷ 17 VDC
• Idling current 1.3 A
• Idling current when off 0.05 mA
• Consumption @ 14.4 VDC, 2Ω, Max Musical Power 50 A
• Remote IN 6.5 ÷ 15 VDC (1 mA)
• ART – Automatic Remote Turn on/off from OUTPUT
• BTL speakers (Selectable) 2 ÷ 7 VDC

AMPLIFIER STAGE

• Distortion – THD @ 100 Hz, 4Ω, 70% Rated Power 0.1%
• Damping factor @ 100 Hz, 4Ω, 2 VRMS 140
• Bandwidth @ -3 dB 10 Hz ÷ 500 Hz
• S/N ratio (A weighted @ 1 V Input) 110 dBA
• Input sensitivity Pre-In Selectable:
• 0.6 – 2.0 – 6.0 VRMS
• Input sensitivity Speaker-In Selectable:
• 2.0 – 6.5 – 20 VRMS
• Minimum load impedance 1Ω

CEA SPECIFICATIONS

• Output power @ 4Ω, 1% THD+N, 14.4 V:
• 500 W
• SN ratio (ref. 1W output):
• 81,5 dB

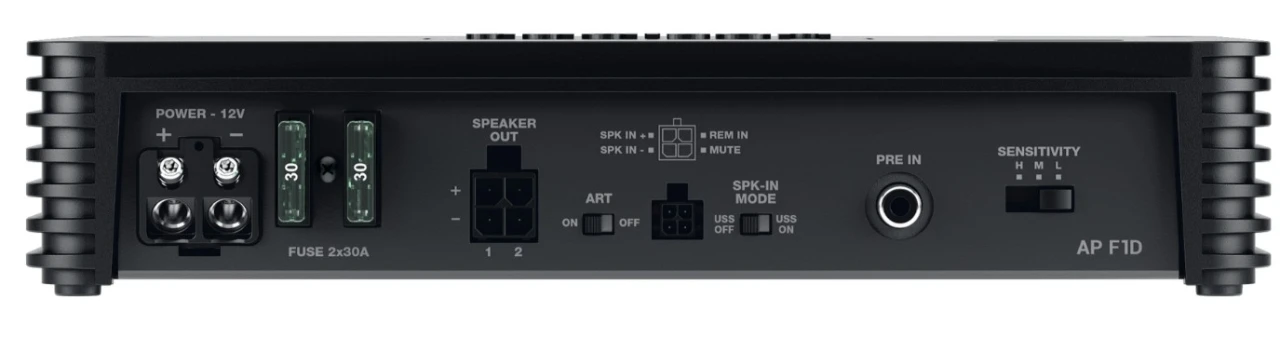

INPUTS

• Pre-In Inputs RCA
• Speaker-In Inputs wired
• Mute (Energy Saving control) wired (active to groung)
• OTHER
• Ambient operating
• temperature range 0 °C to 55 °C (32 °F to 131 °F)
• SIZE
• Max size W x H x D (mm/inch) 238 x 49.5 x 155 / 9.37 x 1.95 x 6.1
• Weight (kg/lbs) 1,92 / 4.23
