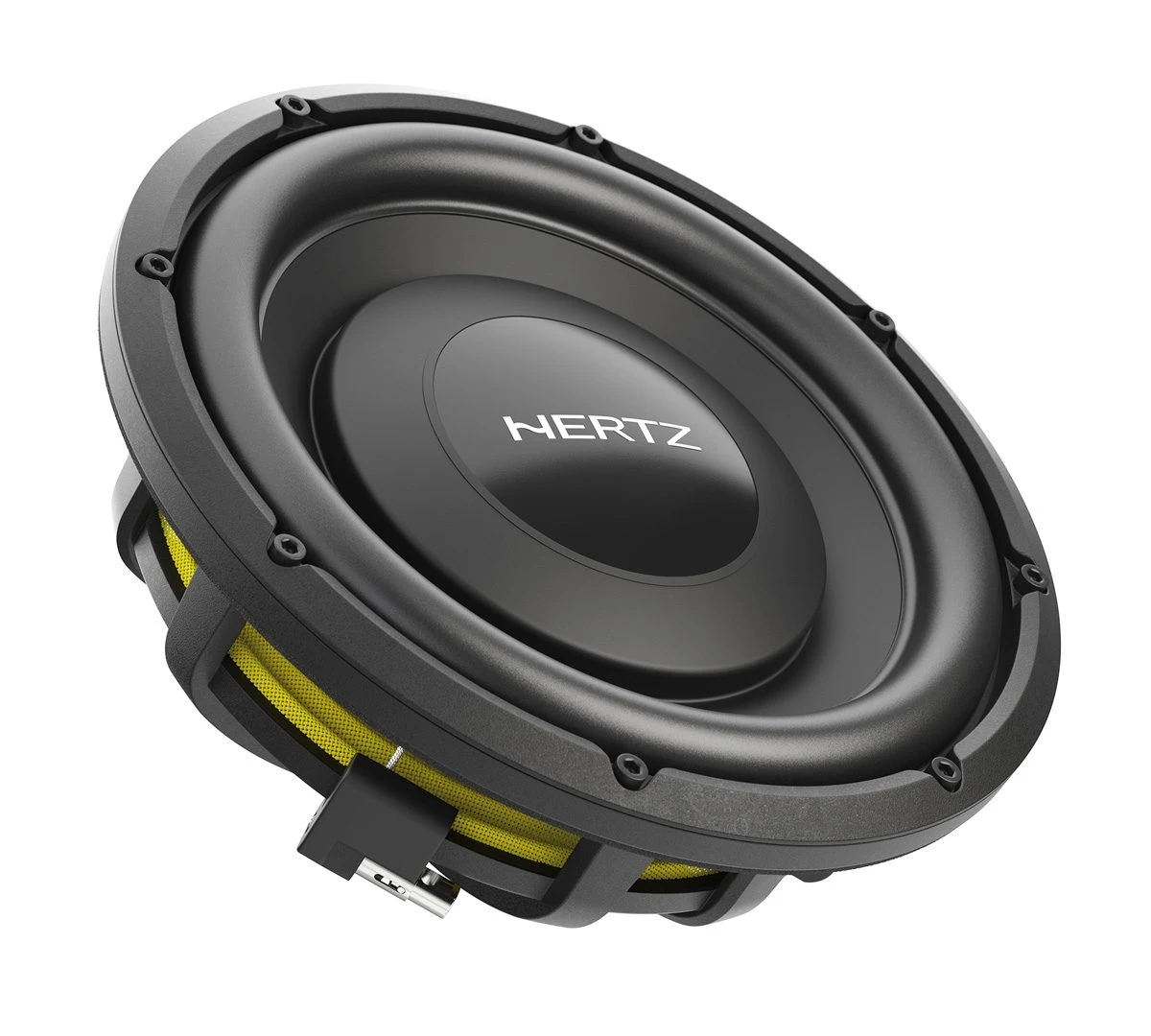

Hertz – MPS 250 S4

MPS 250 S4

250 (10) mm (in.) | 82,6 (3.25) mm (in.) | Subwoofers | 1000 W | 4 Ohm | Single Voice Coil

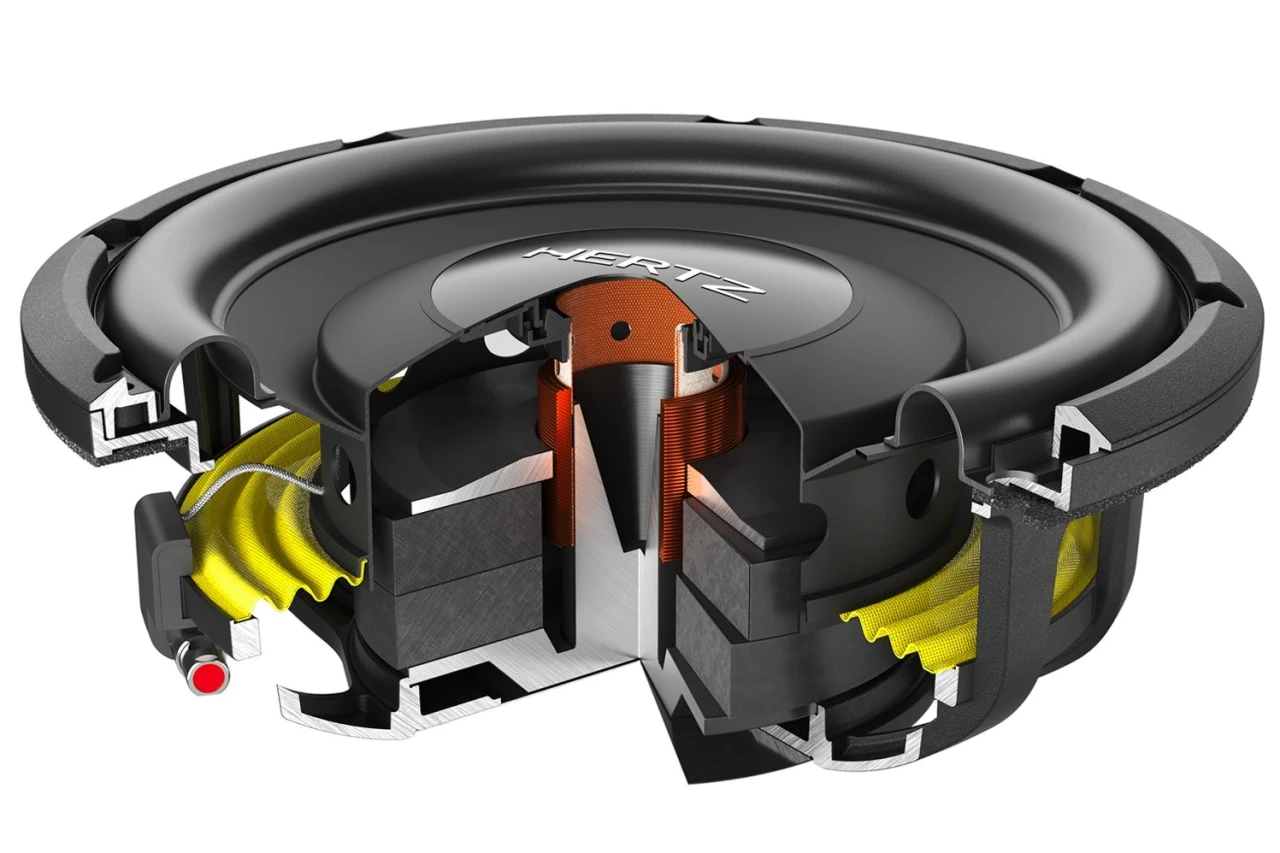

Mille PRO shallow subwoofers have been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box. MPS 250 S4 is optimized to work in ultra-compact sealed boxesstarting from only 14 Lt (0.49 Cf). A typical example is a subwoofer enclosure under the rear bench of pickup trucks, where the space – and the height – are limited. Mille PRO subwoofer have a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design. This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for spider and coil. This solution has allowed to move the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.

• Ultra-shallow mounting (83,6 mm/ 3.35 in.)
• 500 W Continuous Power Handling
• Unparalleled mechanical excursion, +20% than traditional designs
• Robust screw-less mesh grille included
• Optimized for extremely compact sealed enclosure
• Die-cast aluminum design
• Non-vented rear design for reduced box depth installation
• 38mm (1.5 in.) six-layer copper voice coil ensures high thermal capacity
• Air Intercooling Revolution (A.I.R.) to prevent air compression
• Solid horizontal 8 AWG push connectors
• Scan, Discover, Identify

eID (Elettromedia Identification)
The exclusive technology providing the traceability of the Mille.3 products from their birth on. Once the test phase has been passed, the code linked to destination country/market is applied. When purchasing the product, by scanning the code, the user can check through the web the information about the product and can log into the registration page.

Air Innovative Route
Hertz R&D has developed the proprietary AIR (Air Intercooling Revolution) technology, optimizing the fluid dynamics inside the voice coil inner chamber and the magnetic group to minimize the internal compression of air and maximize cooling capacity.

Technische Daten

• Size mm (in.) 250 (10)
• Power Handling – Continuous W 500
• Power Handling – Peak W 1000
• Impedance Ohm 4
• Depth mm (in.) 82,6 (3.25)
• Voice Coil Type single
• No Filter Component Subwoofers
• Voice Coil Ø 38 (1.5)
• Frequency Response Hz 25 – 400
• Magnet size D x d x h mm (in.) 134 x 55 x 36 (6.28 x 2.17 x 1.42)
• Weight of one component kg (lb.) 5,11 (11.27)
• Magnet High density flux ferrite
• Cone Polypropylene
• Xmech mm (in.) 20 (0.79)

Elektro-Akustische Spezifikationen

• D mm 216,6
• Xmax mm 16,8
• Re Ohm 3,3
• Fs Hz 29
• Le mH 3,65
• Vas I 21,2
• Mms g 234
• Cms mm/N 0,11
• BL T*m 17,3
• Qts 0,48
• Qes 0,52
• Qms 5,6
• Spl dB 83,5
