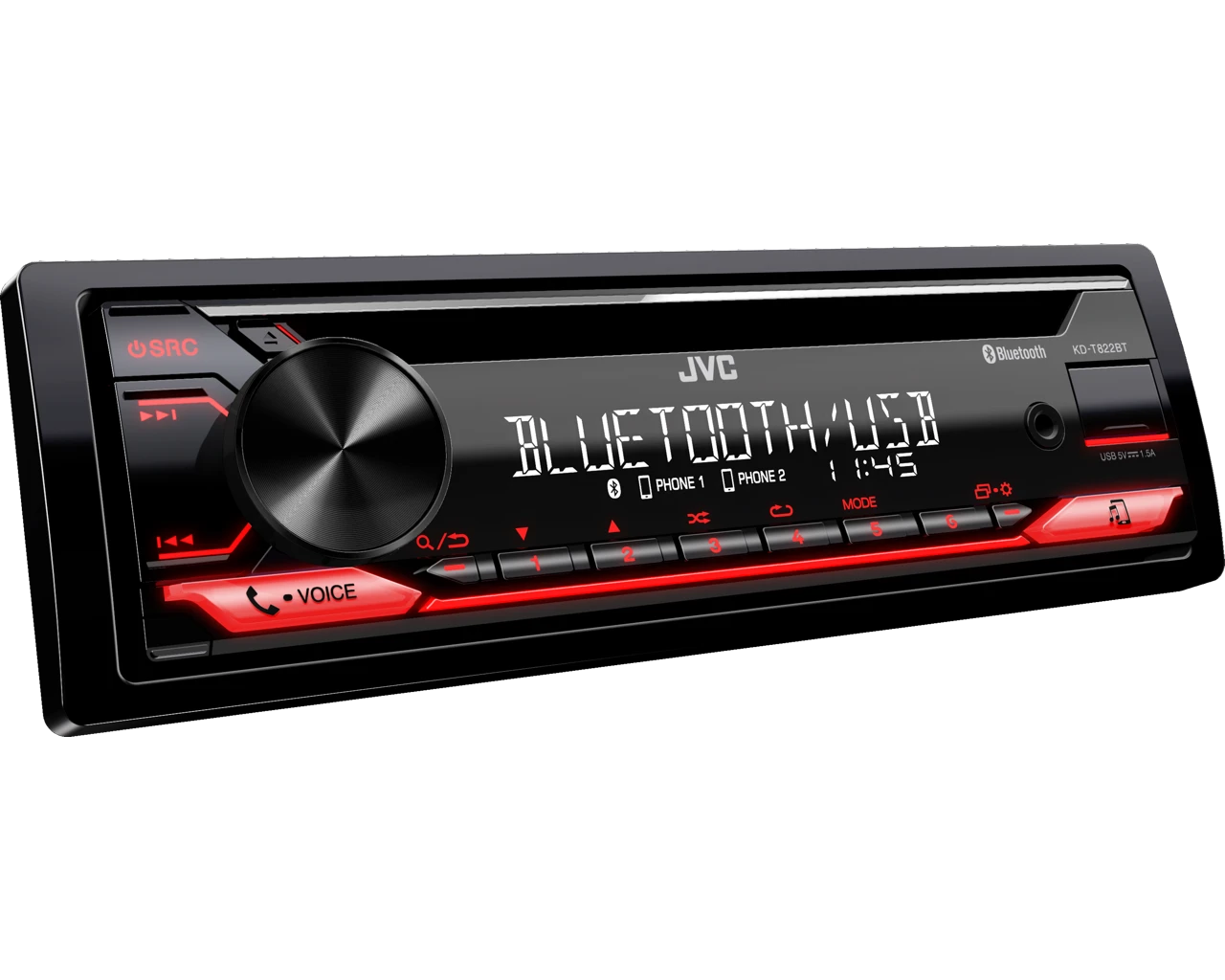

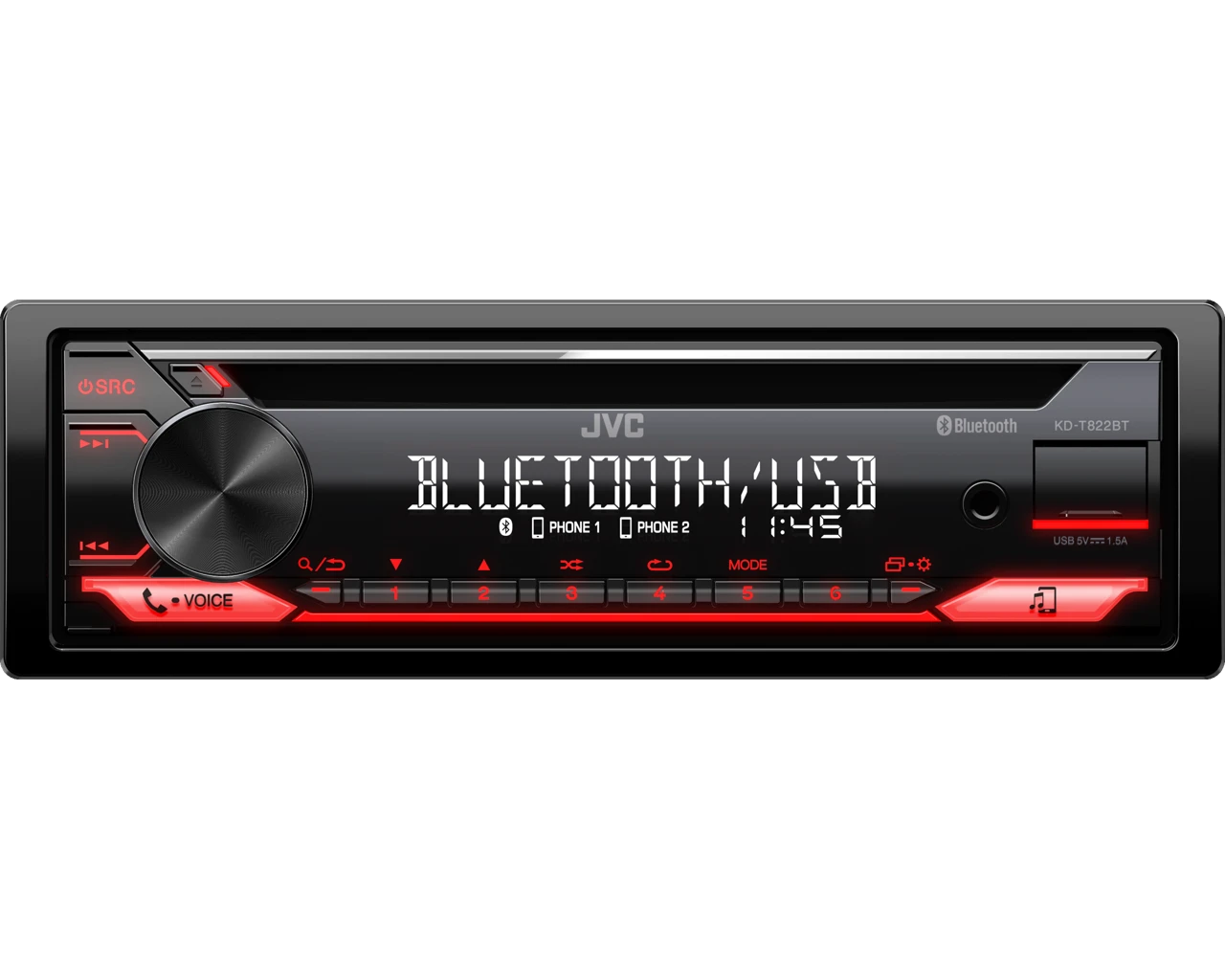

JVC – KD-T822BT

KD-T822BT

Digital Media Receiver featuring Bluetooth® / Front Aux & USB / DSP with DTA & 13-band EQ / JVC Remote App Compatibility.

• Bluetooth® Wireless Technology
• Bluetooth® 2 Phones Full-Time Connection
• Bluetooth® Audio Streaming & Control (A2DP, AVRCP)
• Low Battery Information
• Android Music Playback
• USB High Current 1.5A Charging
• JVC Remote Control App
• Variable Color Illumination
• 13-Band Graphic EQ
• 11-Preset EQ

Display

• Display Type VA LCD Display
• LCD Color White
• Key Color Red
• Music Sync. Effect Yes
• Russian Text Display Compatible Yes
• Spanish Text Display Compatible Yes
• French Text Display Compatible Yes
• Auto Dimmer Yes
• Brightness Control Yes

Media Playback

• MP3 Compatible with Tag CD/USB
• WMA Compatible with Tag CD/USB
• WAV Compatible with Tag USB
• FLAC Compatible with Tag USB ( Up to 96kHz/24bit )

Bluetooth Control

• Built-In Bluetooth Yes (Ver 4.2, Wired-Mic included)
• Hands Free Call Yes (HFP 1.7.1)
• Audio Streaming & Control (A2DP, AVRCP)
• 2 Phones Full-Time Connection Yes
• 5 BT-Audio Connection [Streaming DJ] Yes
• Voice Recognition Dialing (compatible mobile phone required) Yes
• Phone Book Access Profile (PBAP) Yes
• iPhone & Android Automatic Pairing Yes (iPhone only)
• Supported Audio Formats SBC
• Low Battery Information Yes
• Mic Unit Yes

Android Control

• Android Music Playback Yes (via Bluetooth(R))

iPod/iPhone Control

• iPod/iPhone Music Playback Yes (via USB or Bluetooth(R))

USB

• MP3/WMA Compatible with ID3 Tag/WMA Tag Yes
• WAV Compatible Yes
• FLAC Compatible Yes
• Position Front
• USB Power Supply Yes (1.5A)
• Drive Change Mode for Mass Storage Class Yes

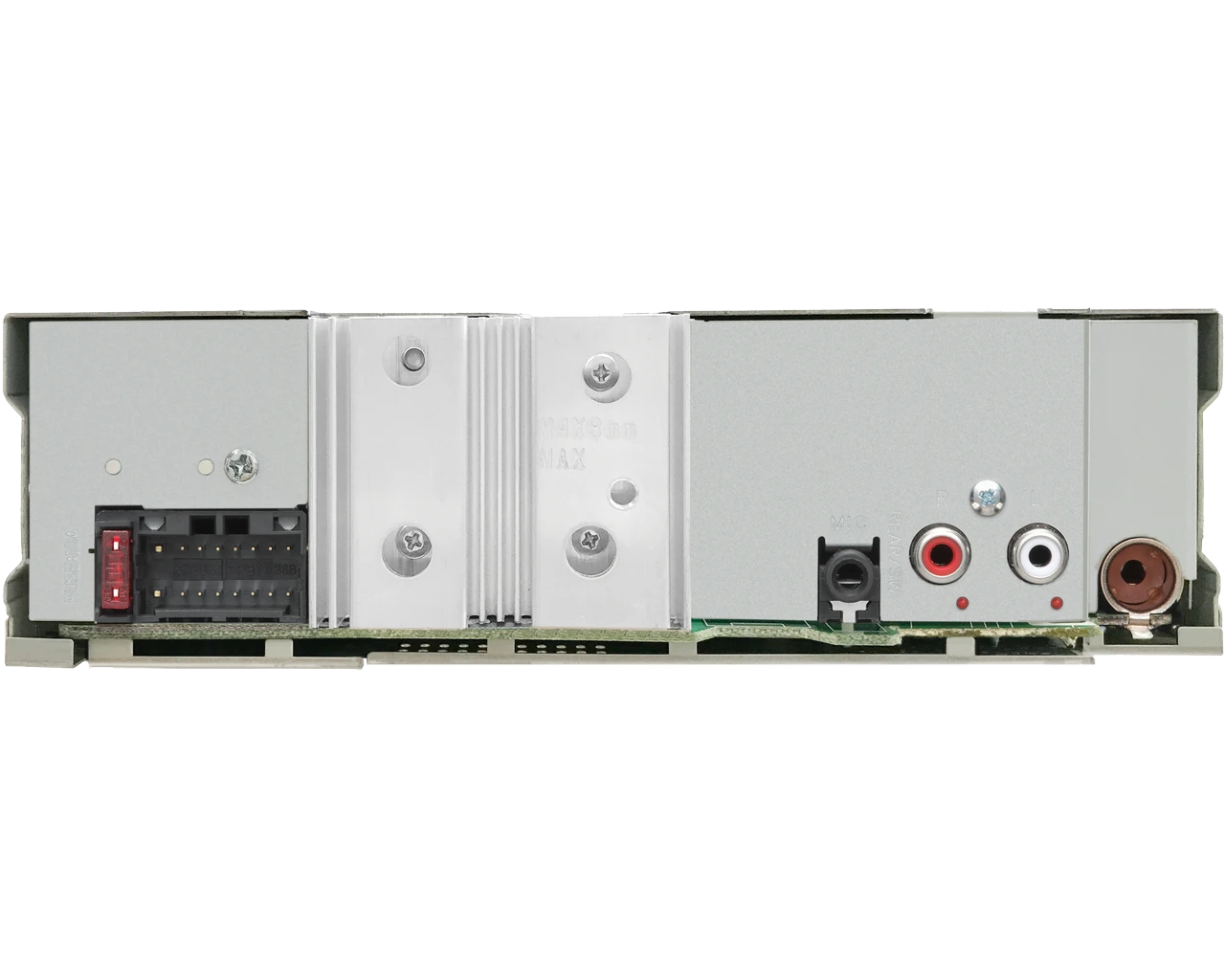

Inputs and Outputs

• AUX Input 1 (Front)
• Line Output Terminals (Pair) 1 Pair (Rear/Subwoofer Selectable)
• Pre-Output Level 2.5V
• Subwoofer Output with Level/Frequency Control Yes (Level -50 to +10)
• Subwoofer Output Level 2.5V

Tuner

• Radio Data System (RDS) Yes
• Preset Stations 18FM + 6AM
• Strong Station Memory (for FM) Yes
• Tuner Preset Memory (for power disconnection) Yes

FM

• FM Frequency Range 87.5 – 108.0MHz
• Usable Sensitivity 0.71uV/75Ω (8.2dBf)
• Quieting Sensitivity (46dB) 2.0μV/75Ω
• Stereo Separation 40dB(1kHz)

MW

• MW Frequency Range 531 – 1,610kHz
• Sensitivity 28.2μv (29dBu)

LW

• LW Frequency Range 153 – 279kHz
• Sensitivity 50μv (33.9dBu)
• AM Frequency Range (MW) 531 – 1,611kHz (9kHz), (LW) 153 – 279kHz (9kHz)

Audio

• Maximum Power Output 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
• Full Bandwidth Power (at less than 1%THD) 22W x 4
• Continuous Power Output (RMS) 20W RMS x 4Ch at 4 ohms and no more than 1.0% THD + N
• Typical Power Output 30W x 4 (PWR DIN45324, +B=14.4V)
• MOS-FET Amplifier Yes
• Sub woofer Direct Connection (Mono Lch) Yes
• Digital Sound Processor (DSP)
• Time Alignment (DSP) Yes
• EQ
• 13-Band Graphic EQ Yes
• Easy EQ Setting Yes
• Preset EQ Yes (11-Preset)
• Sound Enhancement Yes
• Digital Track Expander Yes
• Space Enhancement Yes
• Sound Response Yes
• Sound Lift Yes
• Volume Link EQ Yes
• Loudness Control Yes
• Bass Boost Yes
• High-Pass Filter/Low-Pass Filter Yes/Yes
• K2 Technology Yes
• Load Impedance 4 ohms (4 – 8 ohms allowable)
• Line Output Terminals (Pair) 1 Pair (Rear/Subwoofer Selectable)
• Pre-Output Level 2.5V
• Line Output Impedance Less than 600 ohms
• Subwoofer Output Level 2.5V

General

• Rotary Encoder Yes
• Back Up Memory Yes
• Detachable Face Panel Yes
• Steering Remote Control Ready Yes
• Remote Control Application Yes
• Beep Tone Support Yes (From Speakers)
• ISO Connector Yes
• Installation Size (W x H x D) (W) 182 x (H) 53 x (D) 156mm
• Weight 1.2kg
• Unit weight in individual package 1.5kg

Mobile Entertainment App(s)

• JVC Remote Yes
• App Store (Apple) https://apps.apple.com/nl/app/jvc-remote/id1154864875
• Google Play (Andoid) https://play.google.com/store/apps/details?id=com.jvckenwood.jkts.jvcremoteapp.openlink

CD Player

• MP3/WMA Compatible with ID3 Tag/WMA Tag Yes
• CD-R/RW Compatible Yes
• CD Text Yes
• Random/Repeat Play Yes
• Frequency Response 20Hz to 20kHz(±1dB)
• Dynamic Range 92dB
• Signal-to-Noise Ratio 91
• Channel Separation 86dB
• Wow & Flutter Below measureable limit
