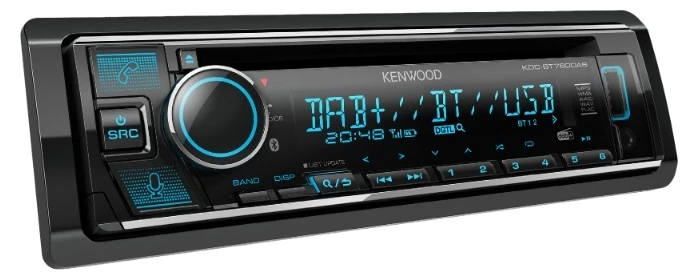

Kenwood – KDC-BT760DAB

KDC-BT760DAB

1DIN CD/USB-Receiver with Bluetooth, DAB+ Radio & Alexa Voice Service.

Display / Cosmetic features:

• Full detachable front panel.
• 2 line Liquid Crystal Display.
• Vertical alignment display for high contrast & wide viewing angle.
• Variable key & display backlight illumination
• 2 Zone colour concept.
• Brightness control.
• Manual & timer set dimmer control.
• Menu language: English(Default)/French/German/Russian/Spanish.
• ID3 Tag language: English/French/German/Greek/Russian/Spanish.
• Demonstration mode.
• Dual Accent key (Telephone / Amazon Alexa voice service).
• Front AUX-in & illuminated USB port with with anti dust cover door.
• 12H/24H clock display.

Sudio features:

• 4 x 50W max output power (MOS-FET).
• 2 RCA pre-outs (2,5V), Front + Rear or Subwoofer (switchable).
• Front stereo mini-jack AUX input.
• Digital Sound Processor (DSP) & Digital Time alignment (DTA).
• 13-Band Equalizer (1x Manual set + 8 Pre-sets)
• Preset sound effects.
• 3-way X’over.
• Subwoofer setup & control.
• Touch sensor tone.

Digital Audio Broadcasting (DAB+) Tuner.

• DAB & DMB audio support.
• 18 (3×6) DAB+ presets.
• Intelligent seek & ensemble seek, Soft link, AF set.
• Multipass noise canceller.
• Amplified, glass mount in car, DAB aerial antenna included.

FM (RDS) / AM (MW/LW) tuner:

• 18 (3×6) FM + 6AM presets.
• Local Seek, Auto memory, Regional, AF set.

Tuner features:

• Retains tuner presets without backup power.
• Mixed presets (6 digital and/or analog (FM/AM) radio stations).
• TI, Traffic Information (FM & DAB).
• PTY search, ASW select, PTY Watch, Related service.

CD-player features:

• CD-DA / CD-R / CD-RW playback.
• MP3, WMA and AAC music files playback.
• CD-text(+) / Tag information display / Time code display.
• Random & Repeat play.

USB port features:

• High Speed USB 2.0.
• 1,5A Quick battery charge (BC1.2 compatible).
• MP3, WMA, AAC, WAV and FLAC music files playback
• Drive change.
• Last position memory / Resume play.
• Random & Repeat play.
• iPod/iPhone USB direct control (iAP2).

Bluetooth features:

• High quality wideband hands-free speech (HFP 1.7.1).
• Dual device connection for full time HFP connection.
• Audio streaming (A2DP) – SBC & AAC Audio Codec.
• Music library Tag browsing(AVRCP 1.6.1).
• Easy pairing via USB.
• KENWOOD remote App ready (Download via App store & Google Play).
• Music Mix (5 phones switchable music streaming).
• Voice control.
• Amazon Alexa voice service support.
• Noice reduction / Echo Canceling / Gain adjust.
• Signal strength, battery level & pairing indicator.
• High quality rear wired microphone included.

General features:

• Firmware update by USB.
• Mitsumi to ISO connector DC cord.
• Steering remote control wire for 3rd party interfaces.
• Less then 1mA dark current in Power Off mode.
• Retains Back-up memory without backup power.
• Power Off in standby mode: Off / 20min / 40min / 60min.
• Detachable faceplate.

DISPLAY / GRAPHICAL USER INTERFACE:

• Display Type: 2 line / 13 + 4 Digits x 13 Seg LCD.
• Display Size (WxH): 80mm x 12mm.
• Backlight illumination: RGB LED (Default: Variable Scan).
• Colour zone: 2-Zone: All zone / Zone1 / Zone2.
• Brightness Control (Display & key): 0 ~ 31 steps.
• Dimmer Control (Display & key): Manual(On/Off) / Timer Set.
• Text scroll: Off / Auto / Once.
• ID3 Tag lanugae support: English/French/German/Greek/Russian/Spanish.
• Menu language: English(Default)/French/German/Russian/Spanish.
• Date & Clock Display in Standby mode: • (Default Off)
• Demo mode: • (Default On).

DAB+ TUNER:

• DAB+ & DMB audio support. •
• Service list in alphabetical order: •
• BAND / Frequency range: BAND III (174,928 MHz ~ 239,200 MHz).
• Sensitivity: -100dBm
• Signal to noise ratio: 90dB
• Connector type: SMB
• Output Voltage: 12VDC
• Maximum Curre: < 100mA
• DAB Aerial: Included (CX-DAB1).

FM/AM TUNER:

• Reception type: FM / AM (MW/LW).
• Radio Data System (RDS): AF / EON / PI / PS / PTY / RT / TA / TP / TI.
• Radio Text Plus: •
• Pre-sets: FM: 18 (3×6) + AM (1×6).
• Pre-set type: NORMAL (Default) / MIX
• Automatic memory entry (AME): •
• Up / Down search: •
• Tuner Pre-set memory w/o backup power: •
• FM Frequency Range: 87,5MHz ~ 108,0MHz (50kHz Step).
• FM Usable Sensitivity (S/N 30dB): 6,2dBf (28,5μV/75Ω).
• FM Quieting Sensitivity (DIN S/N 46dB): 15,2dBf (1,58μV/75Ω).
• FM Frequency Response (±3.0dB): 30Hz ~ 15kHz.
• FM Signal to noise ratio: 68,0dB (Mono).
• FM Stereo Separation: 40dB (1kHz).
• MW Frequency Range: 531kHz ~ 1611kHz (9kHz Step).
• MW Usable Sensitivity (S/N 20dB): 28,5μV
• LW Frequency Range: 153kHz ~ 279kHz (9kHz Step).
• LW Usable Sensitivity (S/N 20dB): 45,0μV

CD PLAYER:

• CD-R / CD-RW / CD-ROM compatible: •
• CD Text: •
• MP3: Compliant with MPEG-1/2 Audio Layer-3.
• WMA: Compliant with Windows Media Audio.
• AAC: AAC-LC “.aac” files.
• Wow & flutter: Below measurable limit.
• Digital filter (D/A): 8 Times over sampling.
• D/A Converter: 24 Bit
• Frequency response (±1dB): 20 Hz – 20kHz (± 1dB).
• Total Harmonic Distortion: 0,01% (1kHz).
• Signal/Noise Ratio: 96dB (1kHz).
• Dynamic range: 92dB
• Channel separation: 90dB
• 0 Bit mute: •

USB:

• USB standard: USB1.1/ 2.0 (High speed).
• File system: FAT 12 / FAT 16 / FAT 32.
• MP3: Compliant with MPEG-1/2 Audio Layer-3.
• WMA: Compliant with Windows Media Audio.
• AAC: AAC-LC “.aac” & “.m4a” files.
• WAV: Linear PCM “.wav” files.
• FLAC: FLAC file (Up to 24bit / 96kHz).
• Maximum supply current: 1,5A Quick battery charge.
• Frequency response: 20 ∼ 20kHz (± 1dB).
• Signal to noise ratio: 99dB (1kHz).
• Dynamic range: 93dB
• Channel separation: 90dB
• iPod / iPhone direct control: iAP2 over USB

BLUETOOTH:

• Version: Bluetooth 4.2.
• HFP (Hands free protocol): High quality wide band speech (HFP 1.7.1).
• Dual Phone connection: •
• SPP (Serial Port Profile): •
• PBAP (Phonebook Access profile): V1.2
• A2DP (Advanced Audio Distribution Profile): SBC & AAC audio codec.
• AVRCP (Audio/Video Remote Control Profile): Music Library Browsing (V1.6.1).
• Voice control: •
• Rear wired microphone: included (3m cable)

AUDIO:

• Max output power: 4 x 50W (MOSFET).
• Output power (DIN45324,+B=14.4V): 30 W x 4.
• Subwoofer Level Adjustable: -50 ~ +10.
• Equalizer (Manual set): 13 band graphic equalizer / 62,5Hz~16kHz.
• Equalizer Pre-set: Natural/Rock/Pops/Easy/Top40/Jazz/Powerful/User.
• Bass Boost: Off / +01 / +02 / +03 / +04 / +05.
• Loudness: Off / Low / High.
• Subwoofer set: On / Off.
• Fader position control: Rear 15 ~ 0 ~front 15.
• Balance position control: Left 15 ~ 0 ~ right 15.
• X’over network: Tweeter / HPF front / HPF rear / Subwoofer.
• Speaker size control: Front / rear /subwoofer.
• Sound Reconstruction: •
• Space Enhancer: •
• Sound Realizer: •
• Stage EQ – Sound elevation: •
• Drive EQ: •
• Pre-out: 2x RCA: Front + Rear or Subwoofer (Switchable)
• Pre-out Level: 2,5V
• Pre-out impedance: ≤ 600 Ω
• Speaker Impedance: 4 ~ 8 Ω
• AUX in: 3.5mm stereo mini-jack.
• AUX maximum input voltage: 1000mV
• AUX Frequency response: 20 ∼ 20kHz (± 3dB).
• AUX Input Impedance: 30 kΩ
• Touch Sensor Tone: •

General

• Operating voltage: 14.4 V (10.5 – 16V allowable).
• Maximum Current consumption: 10A
• Dark Current consumption in “All Off” mode: < 1mA
• Installation Size (W x H x D): 1DIN, 182 x 53 x 155,5 mm.
• Net Weight (Trim Plate & Mounting Sleeve Incl. 1,3kg.
• Firmware Update: via USB.
• All Off Mode: 0 / 20min / 40min / 60min.
• DC Cord: 15cm (ISO to Mitsumi connector).
