MTX – RTX84

RTX84

High efficiency midrange woofer • Diameter : 20cm (8“)

Features

• Exceptionnal sound quality with an incredible sence of music…
• 51mm giant KSV voice coil for more power handling
• 134mm extra large strontium magnet for a better cone control and more power handling
• Compressed paper cone for more efficiency, softness and high quality sound
• Treated Cloth edge suspension for a better efficiency
• Highly detailed midrange Good bass response

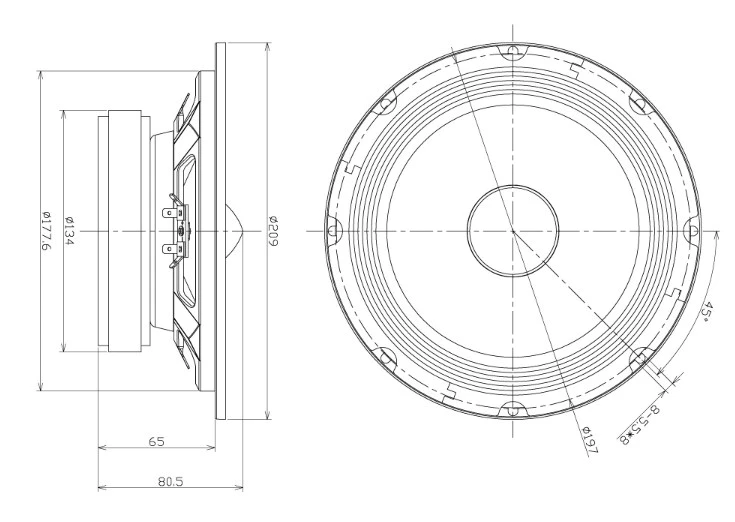

• Easy to install – Fits into the origianl 8“ 20cm cut outs (Ø178mm)
• Sold by piece – You need two RTX84 for a stereo system
• Design to work fine with MTX RTX2BTs or RTX4BTs tweeters

Specifications

• High efficiency midrange woofer • Diameter : 20cm (8“)
• Max Power : 600W
• RMS Power : 150W
• Sensitivity : 97,7dB/2,83v/1m
• Impedance : 4Ω
• Freq. response : 100Hz – 5000Hz • Mounting Depth : 65mm
• Recommended x-over : >100Hz • Fs : 98,8Hz

Parameters

• Re : 3,10Ω
• Le : 0,092mH
• L2 : 0,488mH
• R2 : 2,39Ω
• Cmes : 403,97μF
• Res : 43,18Ω
• Fs : 98,8Hz
• Mms : 20,495g
• Mmd : 16,962g
• Rms : 01,175Kg/s
• Cms : 0,127mm/N
• Kms : 7,89N/mm
• Bl : 7,123N/A
• Qms : 10,823
• Qes : 0,777
• Qts : 0,725
• Vas : 8,1998 liters
• Sd : 213,82cm2
• Lnom : 97,7/2,83V/1m
