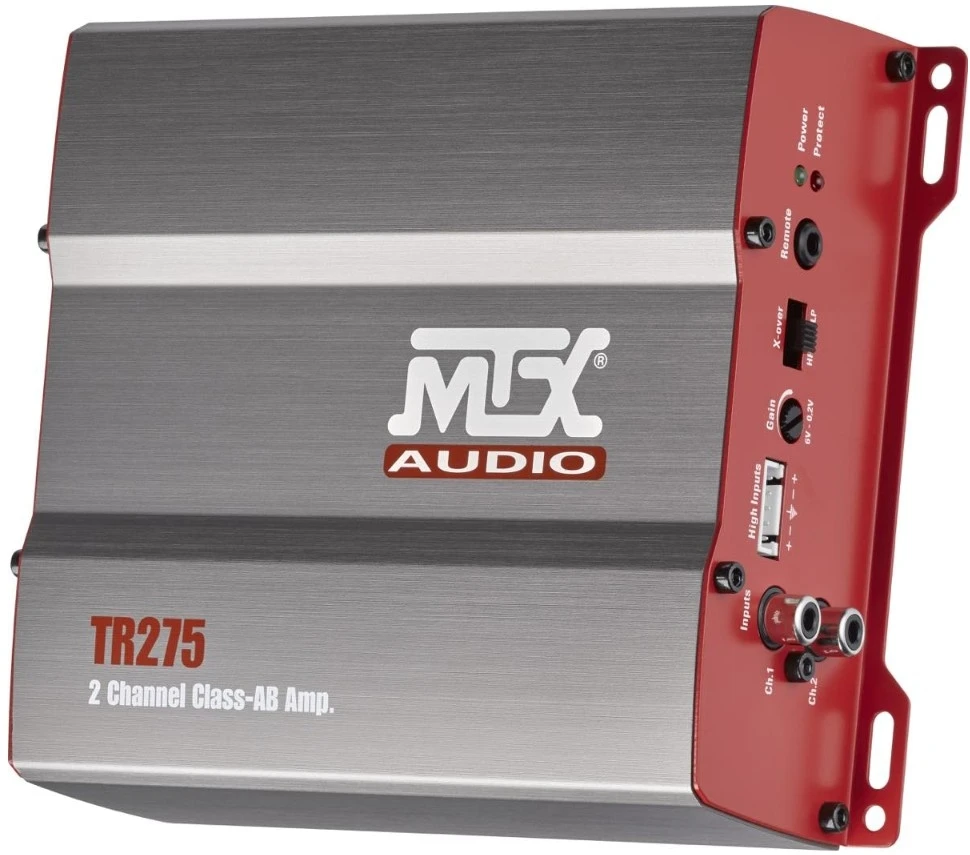

MTX – TR275

TR275

2-Channel Class-AB wide range amplifier

Features :

• Wide range Class-AB amp for speakers and subwoofer
• Bridge mode for a subwoofer or an enclosure
• Optimized for 2Ω loads in stereo and 4Ω loads in bridge mono
• 12dB/Oct high-pass or low-pass x-over for speakers or subwoofer
• Full aluminum construction
• Optimized for RTE12AS, RTE12AV, RTF10AS, TR12AV, RT10AS, RT12AV Optional EBC remote control sold separately (Reference : EBC-1)

2-Channel Class-AB wide range amplifier

CEA2006 certified Power Output :

• 2x110W RMS @2Ω and THD+N ≤1%
• 2x75W RMS @4Ω and THD+N ≤1%
• 1x220W RMS bridged @4Ω and THD+N ≤1%

Crossover :

• High pass 12dB/oct 80Hz
• Low pass 12dB/oct 80Hz

• Signal-to-Noise Ratio (1 Watt) : > 74dB
• THD+Noise (Distortion) (1 Watt) : ≤ 0,18%
• Frequency Response (±1dB) : 10Hz-60000Hz
• Maximum Input Signal : 6V
• Maximum Sensitivity : 200mV
• Dimensions : 142x134x51mm

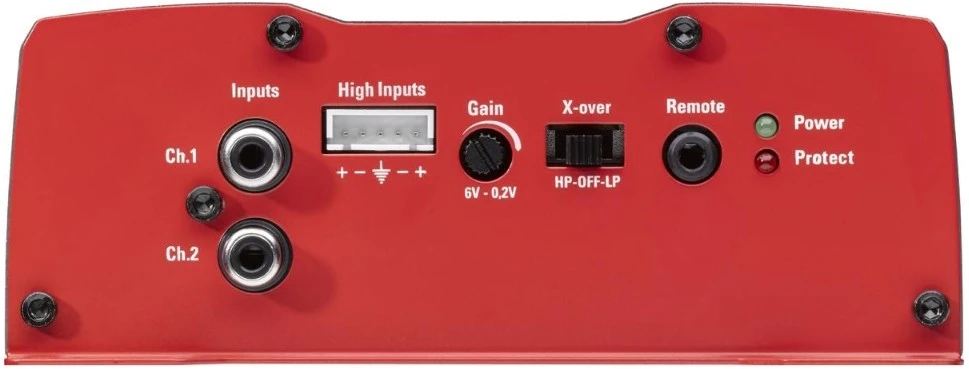

• High level inputs
• Optional EBC remote control (EBC-1)
