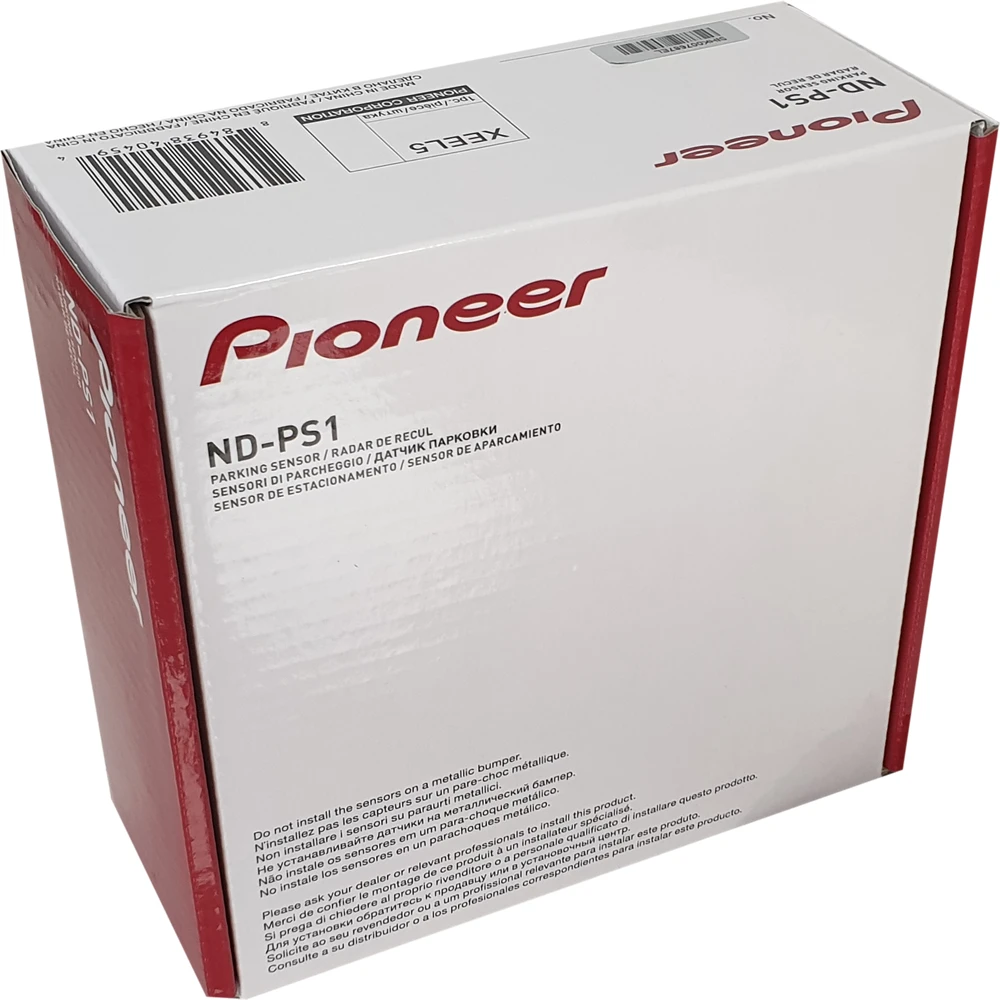

Pioneer – ND-PS1

ND-PS1

Optionale Parksensoren für SPH-10BT

Control box specification

• Nominal voltage 14,4 V DC
• Operating voltage 10,8 ~ 15,1 V DC
• Rated current 10 ~ 30 mA bei 14,4 V DC
• Detection Range 0,3 m ~ 2,5 m
• Operation temperature range -30°C ~ 80°C
• Dimensions (WxHxD) 105,3 mm x 21,8 mm x 56,0 mm
• Gewichtung 50 g / 1 pc

Cable length

• Power cable 1 m
• Connection cable: 5 m

Sensor specifications

• Center frequency 40 kHz
• Directivity X-axis 70°
• Directivity Y-axis 70°
• Maximum input voltage 120 Vp-p (bei 40 kHz)
• IP code IP67
• Abmessungen φ 23,5 mm x 19,8 mm (Kabel ausschließen)
• Cable length 2,5 m
