RAM MOUNTS – RAM-B-289U

RAM-B-289U

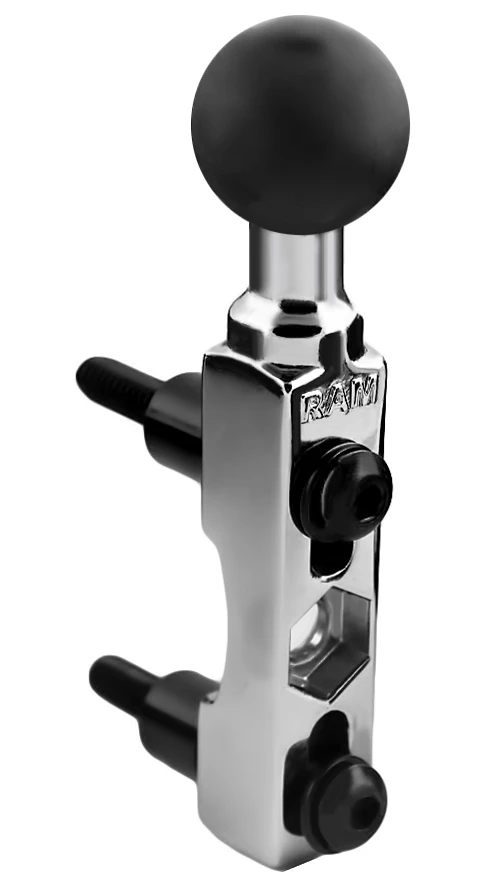

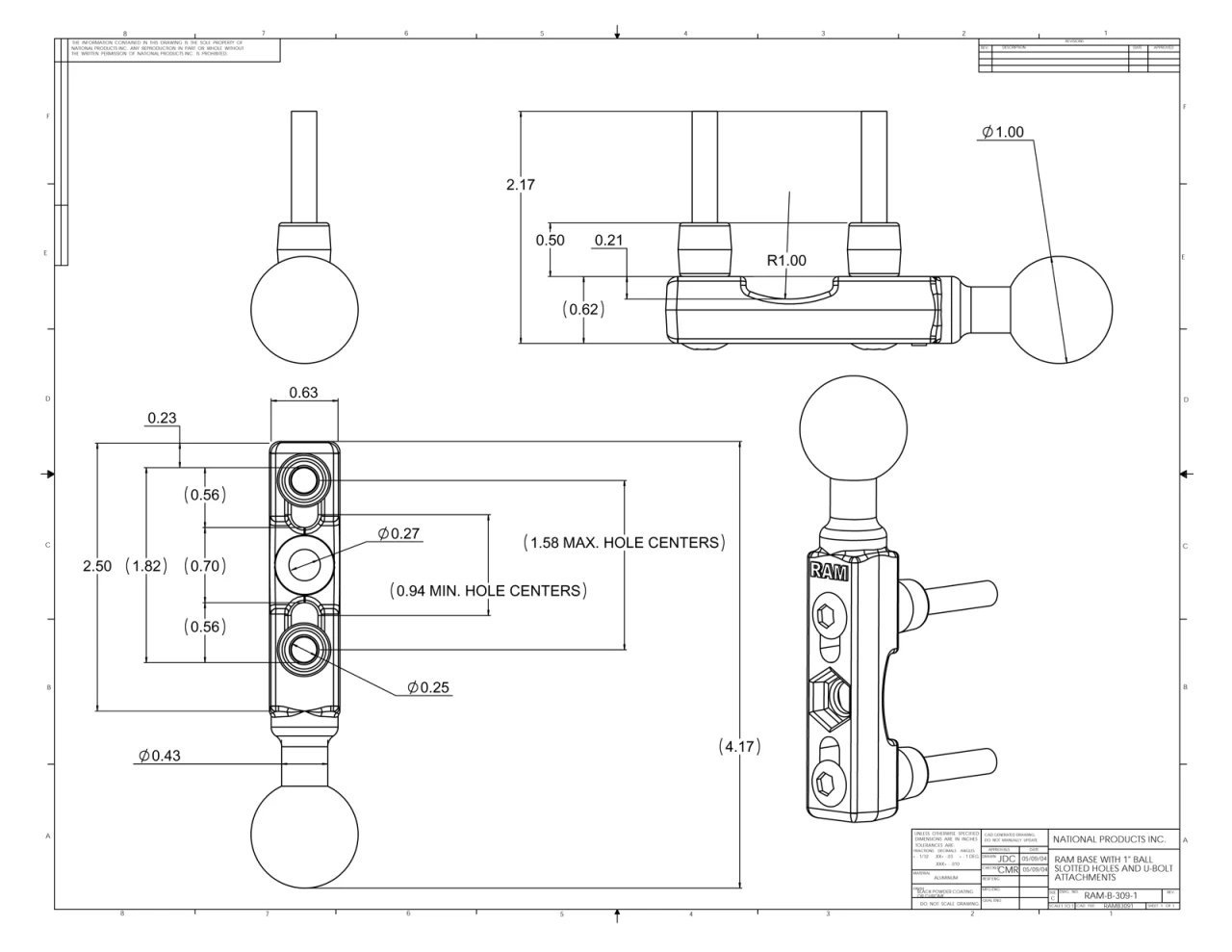

The RAM-B-309-1CHU connects to your handlebar clutch/brake clamp, left or right side, and holds one 1″ diameter mounting ball. The chrome base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-1CH base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94″ and a maximum of 1.58″.

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1″ Rubber Ball „B“ Size

Note:
The „U“ in the part number reflects product packaged in poly bag.
