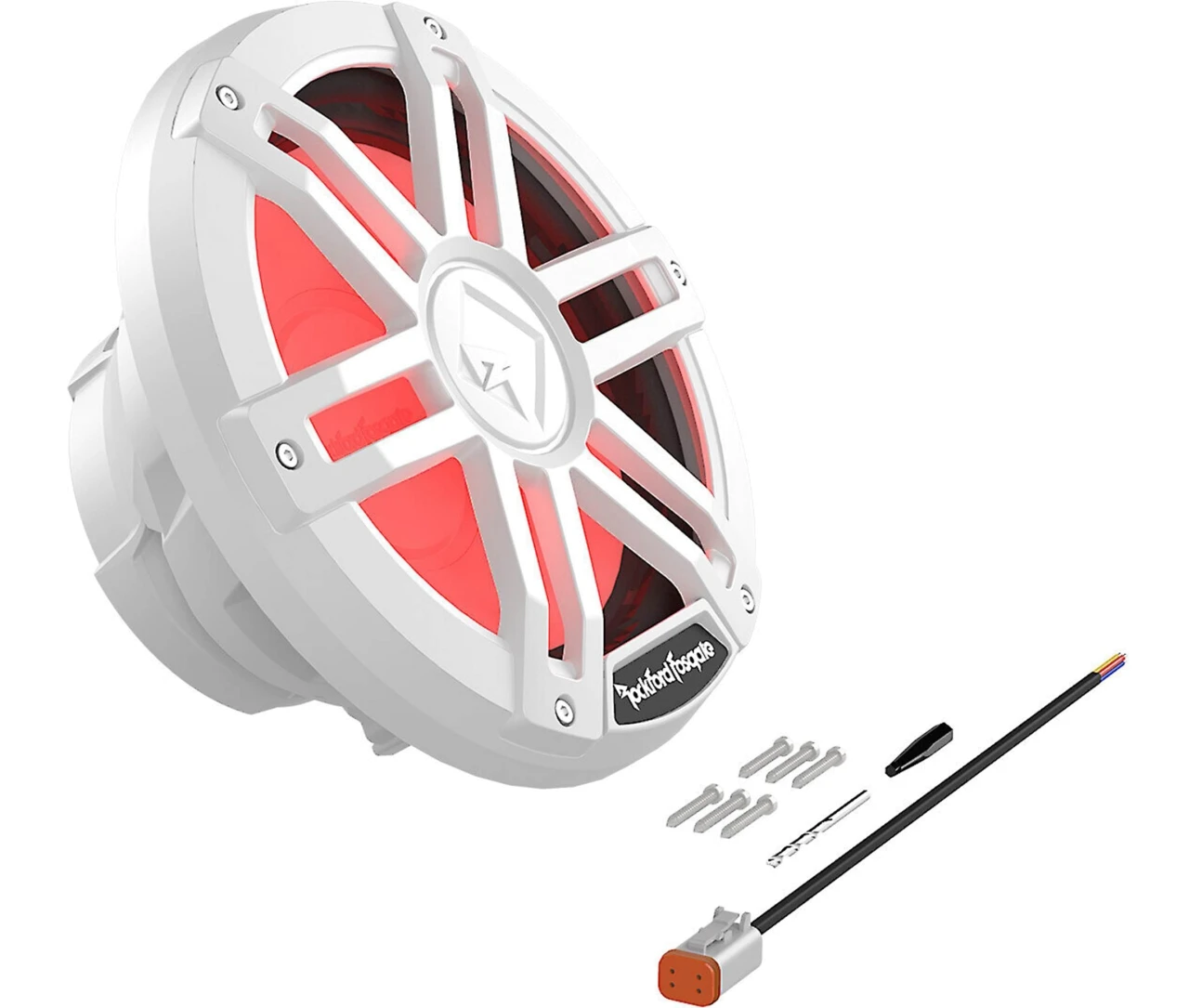

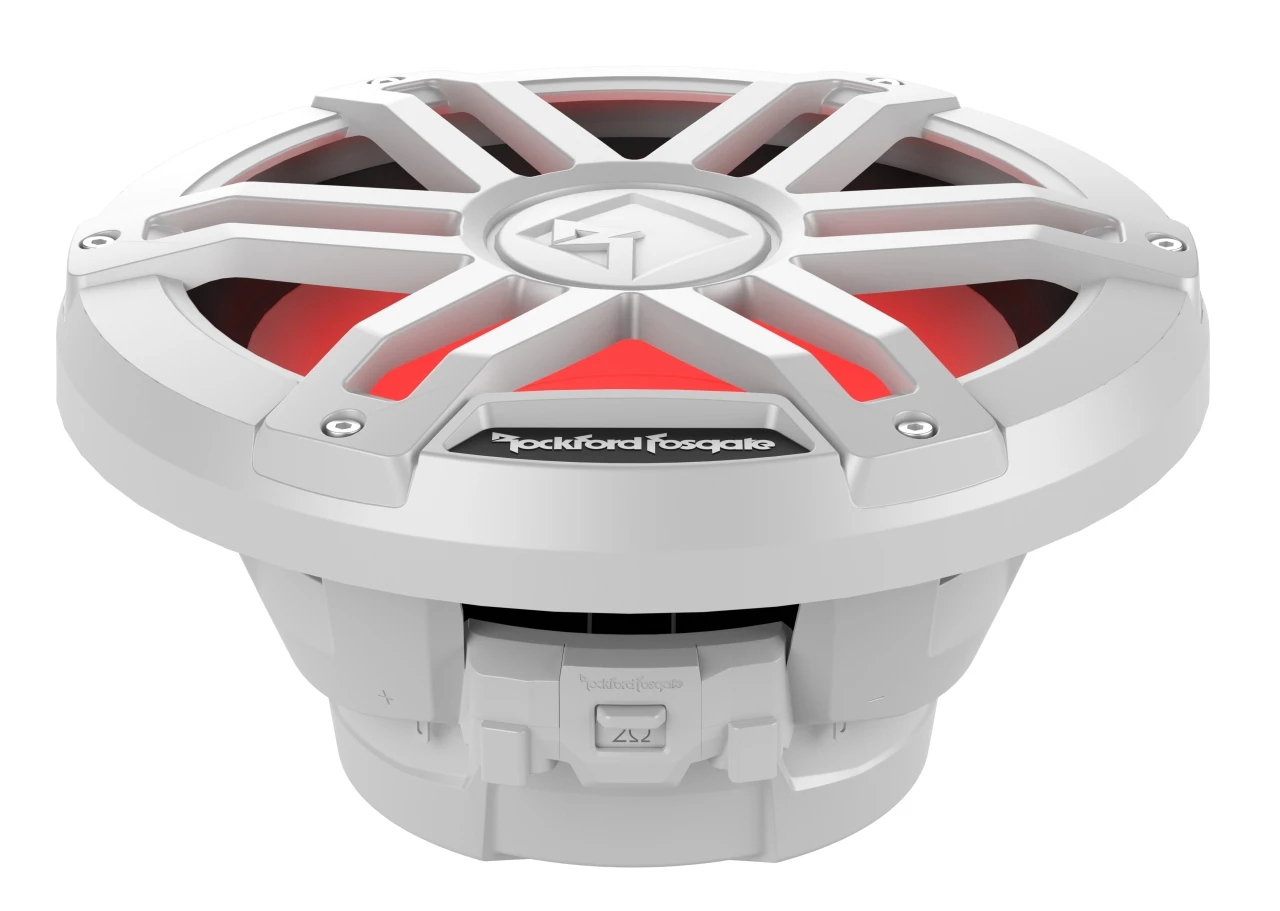

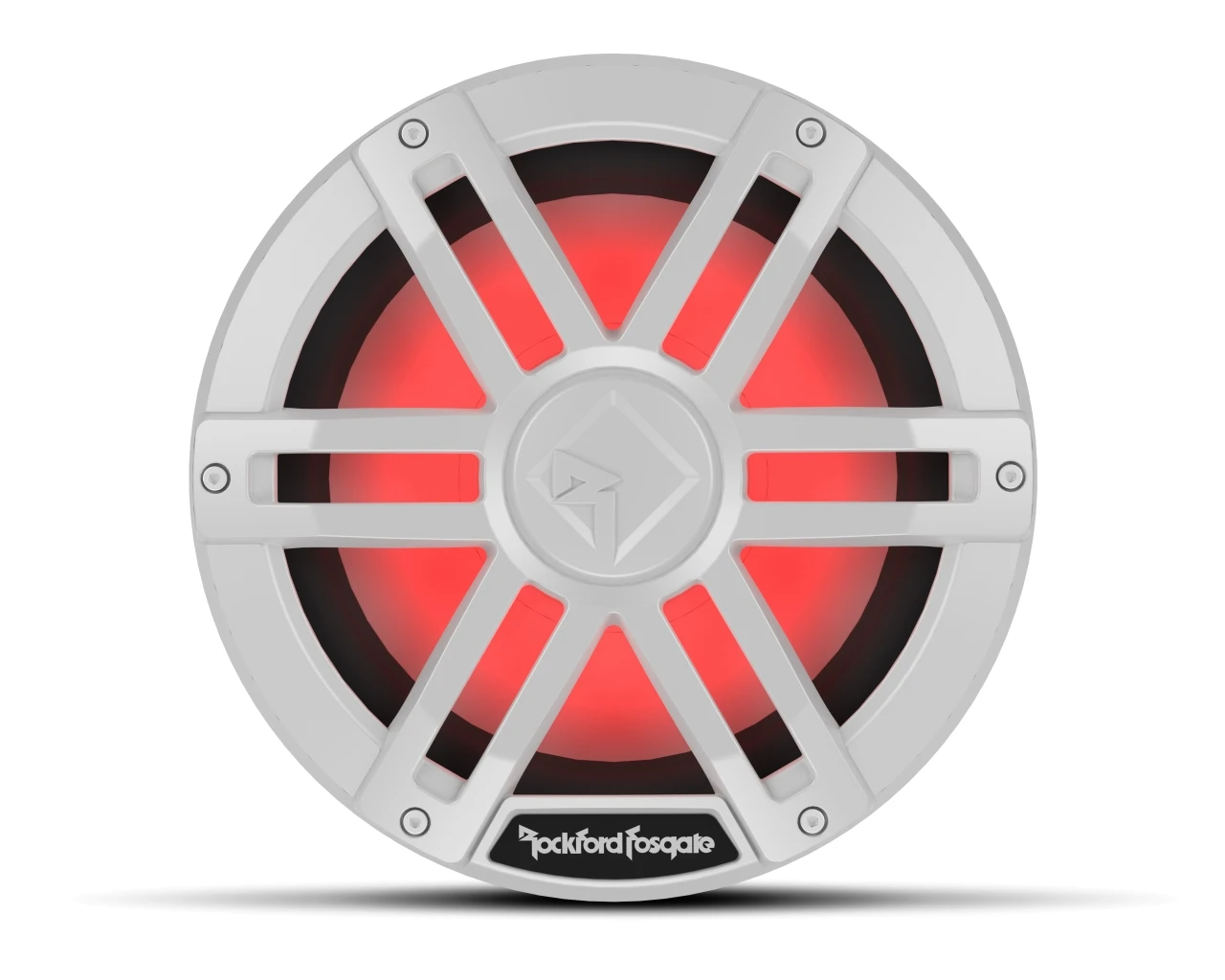

Rockford Fosgate – M1D4-10

M1D4-10

The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™/Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 Ω as easy as flipping a switch.

• Optically clear UV stable RGB Lighting Encapsulation
• Ultra-bright wide-angle RGB LEDs
• Vented motor design
• Water-repelling nano coated mesh screen
• 2″ (50mm) High Temp Kapton™ Dual Voice Coil
• Fully insulated silicone tinsel leads
• 100% UV Stable ASA plastic frame & grille design
• Zinc Nickel-plated Marine grade brass connection terminals
• Industry’s first molded in-frame connectors
• Integrated Deutsch™/Amphenol™ connectors
• Linear Synthetic Fiber Blend Spiders
• Santoprene VAST Surround
• VAST increases effective radiating cone area up to 25%
• Co-molded surround and mineral filled polypropylene cone
• Injection molded mineral filled polypropylene cone body

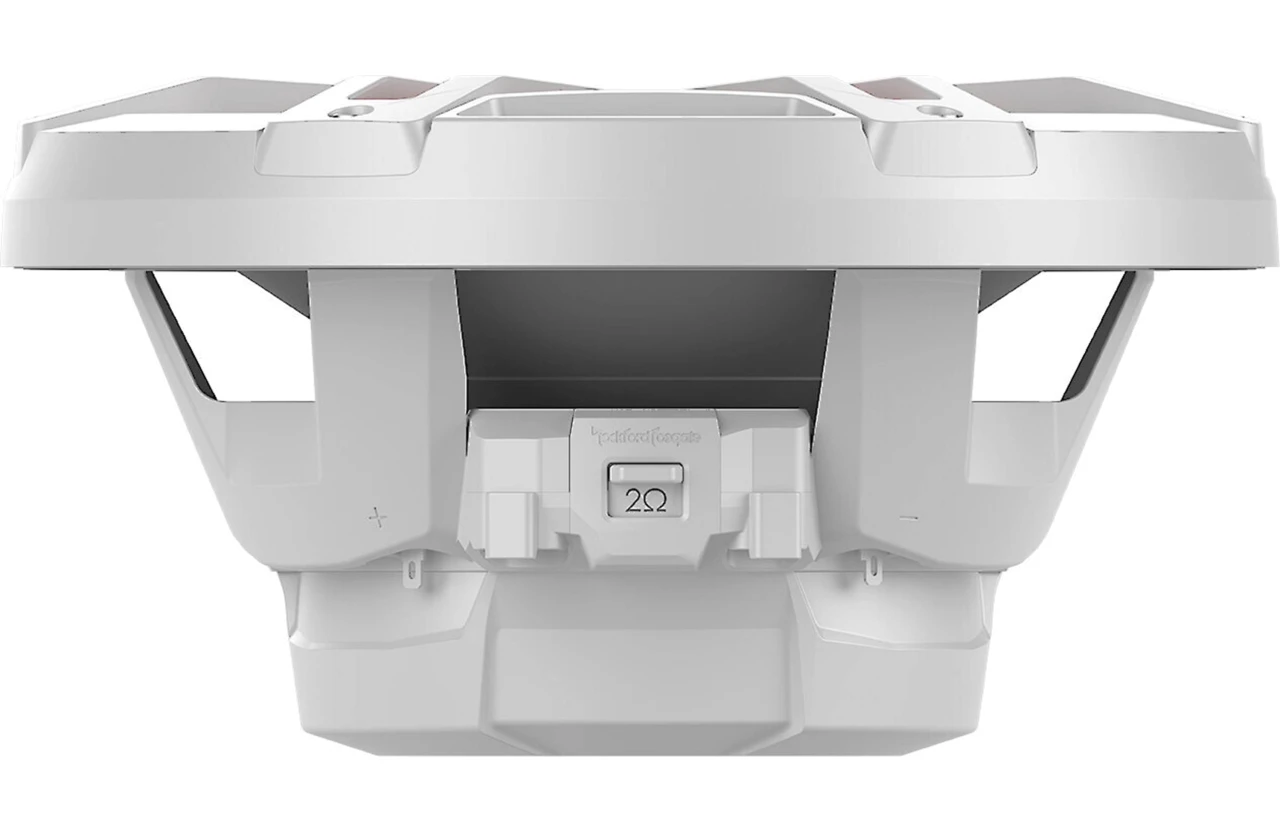

• VERSA impedance switch
• Series or parallel configuration without additional wiring

• 25 cm (10″) Subwoofer
• 300 Watts RMS
• 1200 Watts Max.
• Impedance 2 or 8 Ω switchable
• Frequency Response 20 Hz – 750 Hz
• Mounting depth 107,4 mm
• Mounting diameter 226 mm
