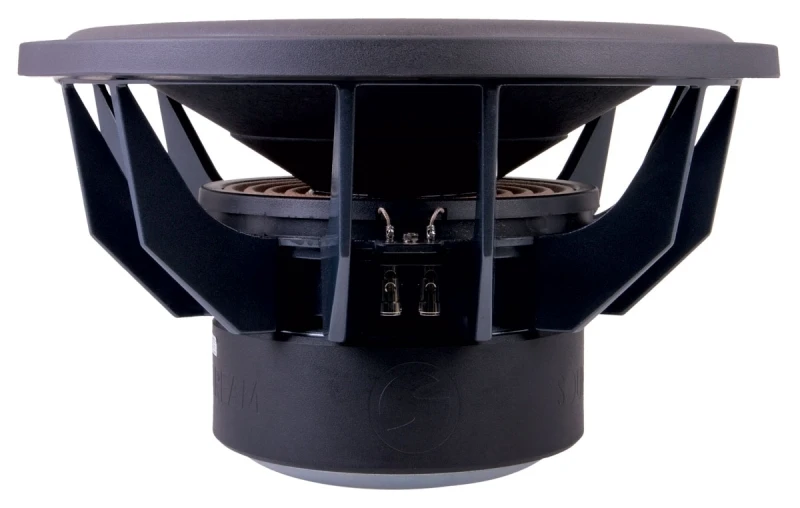

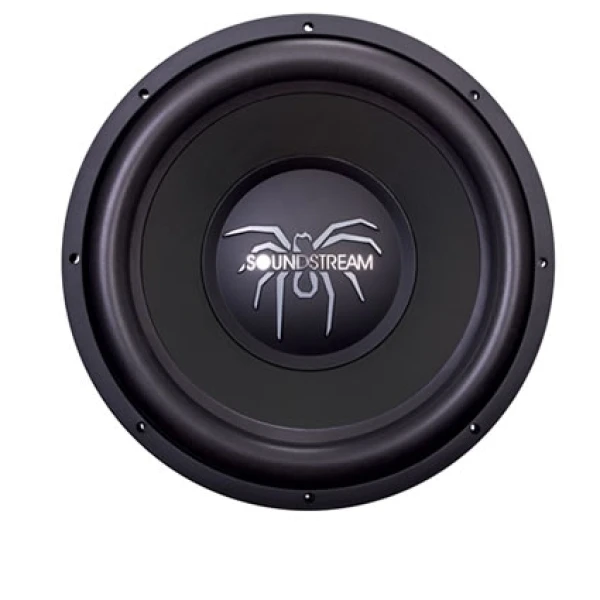

Soundstream – SPLX-122HF

SPLX-122HF

To Burp or to Bass Race? That is the question… The answer is not easy. Competitors who use music like the powerful low rumble of low bass. The competitors that use test tones prefer higher notes for increased SPL scores. Last year we introduced the new SPLX-HX series that had increased power handling, lower Fs, and longer Xmax. This year, to compliment the HX is the brand new SPLX-HF. As HX stands for High eXcursion, HF stands for High Frequency. SPLX-HF has a higher Resonant frequency and higher efficiency.

•     Cast Aluminum Frame
•     Dual 2 ohm 3” CCAW Coils
•     Epoxy Coated Spruce Pulp Cone
•     Dual NOMEX Spiders
•     Re-cone Kits Available

series wired	SPLX-122HF	SPLX-152HF
Fs (hz)	40.32	35.96
Qms	6.348	6.476
Vas (ft³)	0.936	87.56
Cms (mm/n)	0.072	0.0794
Mms (g)	218.0	247.1
Xmax (mm)	13.00	13.00
Xmech (mm)	19.50	19.50
Piston Diameter (in)	10.04	13.19
Sd (in²)	79.16	136.6
Qes	0.453	0.503
Re (Ω)	2.92	2.95
Z (Ω)	4	4
BL (Gauss)	18.88	18.09
Rms Power (watts)	1,000	1,250
Qts	0.423	0.467
NO (%)	0.37	0.78
1w/1m SPL (dB)	87.70	90.95
Voice Coil Diameter (in)	3″	3″
Impedance (Ω)	DVC 2Ω	DVC 2Ω
M-vd (ft³)	0.188	0.298
Measurements (in)	SPLX-122HF	SPLX-152HF
Overall Diameter	12.625	15.25
Overall Height	8.125	9.25
Mounting Depth	7	8.375
Cutout Diameter	11	14.125
Motor Diameter	7.75	7.875
Motor Height	3.5	3.5
Flange Width	0.875	0.75
Flange Height	0.75	0.625
Weight (lb)	34	35



SPLX-122HF High Tuning
Vol. (ft³)	Vent (dia. X L)	Freq. (Hz)	-3dB (Hz)	Gain (dB @ Hz)
2.00	(2) 4″ x 11.75″	50.2	41.5	4.7 @ 54.6
3.00	(3) 4″ x 11.75″	50.1	40.8	6.1 @ 52.7
4.00	(3) 4″ x 6.25″	50.1	40.8	7.1 @ 51.8



SPLX-122HF Low Tuning
Vol. (ft³)	Vent (dia. X L)	Freq. (Hz)	-3dB (Hz)
2.50	(3) 3″ x 14″	39.9	34.2
3.50	(3) 3″ x 12.25″	34.1	29.8
4.50	(2) 4″ x 14.5″	30.0	26.7
